Wireless Controls and Automation



Industrial Wireless Radio Controls

Industrial Wireless Radio ControlsMade in USA

915472   Two  (2)  Channel System
915474   Four (4)  Channel System
915478   Eight (8)  Channel System

  Performance
6 miles ( 10 km ) line-of-sight
 Extended range up to 20 km
Operation: 120/240VAC or 12VDC

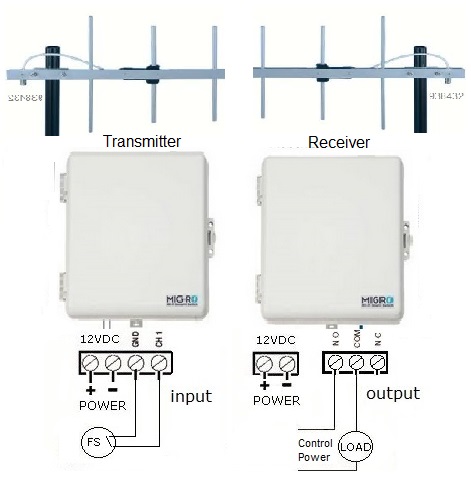

Transmitter input N/O Dry contact
• Relay Output SPDT, 8A @250VAC Class 2 pilot duty
Heavy Duty NEMA4, IP65  enclosure
• License free operation MURS band
• Factory configured systems, Ready to operate
• No setup or programming required
• Not limited to line-of-sight communication
.
   Specifications      Digital Transmitter
Supply power 120/240VAC or 12VDC /  5watt
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 18 lb (9.40kg)  each unit
Dimensions* 10"W x 8"H x 4"D (254 x 200 x 100 mm)

   Specifications      Digital Receiver
Supply power 120/240VAC or 12VDC /  5watt
Output   Relay  8Amp, Class 2 pilot duty
Frequency 154MHz  • License free MURS band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Screw Terminals
Antenna Z 50 Ohm
Ambient temp  14° to 140° F (-10° to 60° C)
Enclosure  NEMA4, IP65

  Dimensions *  Final Component layout and Dimension may vary



DISCLAIMER:
Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.



   Long Range Wireless Systems  154MHz

Applications:
Industrial Monitoring, Pump control, Monitor remote sites, Tank Level,
Lighting control, Remote Mobile system, PLC remote, SCADA, Gates.
Factory process control,  Alarms, Generators
Solar,  Wire replacement.

  Long Range Wireless Systems  154MHz Long Range Wireless Systems  154MHz

 Please Request latest price


      Receiver with Clear Cover Enclosure

Receiver with Clear Cover Enclosure

Receiver with Clear Cover Enclosure
Receiver with Clear Cover Enclosure



Transmission Mode  Selection for each channel
Continuous

2  Off  Delay Timing

3 Pulse Output
 4 Latching
4 Latching
 5  Fail Safe Mode  Supervised transmission
for designated channel

Package Kit:
One  Base Transmitter, One  Base Receiver
Two 34" Omni Antennas with 10ft coaxial cable, NEMA 4 Enclosures & Instructions

    Please Request latest price
