      365 days Programmable Clock Timer, 12, 24 VDC  and 120-208-240 VAC


Smart Time Clock
  Series EL,  Daily, weekly, monthly, and yearly program in one device
2, 4 or 6  Independently zone controlled,  normally open relay programmable output mode.

365 Days, Weeks, Days, Hours, Minutes, Override: Photocell or BAS input, Multiple daily/weekly events.
Add; ON delay, OFF delay, Cyclic timers, Counters, Logic functions, Latch, Sequence relays, etc.

 USB connection for uploading, downloading and transferring of programs

Included in the price: One Controller, USB interface w cable and CD with manual, examples



2

C
H
A
N
N
E
L

365-Day Smart Time Clock
2 Circuit - SPST -10 Amps
120/208/240/VAC

EL6ACU    $199.99



365-Day Smart Time Clock
2 Circuit - SPST -10 Amps -
12/24/VDC

EL6DCU  $199.99

4

C
H
A
N
N
E
L

365-Day Smart Time Clock
4 Circuit - SPST -10 Amps
120/208/240/VAC

EL12ACU 239.99



365-Day Smart Time Clock
4 Circuit - SPST -10 Amps
12/24/VDC

EL12DCU  $239.99

4

C
H
A
N
N
E
L

365-Day Smart Time Clock
4 Circuit - SPST -10 Amps
120/208/240/VAC

ELC12ACU  $289.99



365-Day Smart Time Clock
4 Circuit - SPST -10 Amps
12/24/VDC

ELC12DCU $289.99




   Specifications:


Power

Input Power Voltage & Consumption

 ELC12DC  12/24 VDC,      120mA

 ELC12AC  120/240 VAC,    90mA

Discrete inputs
  DC Inputs:  Dry contact
 Input frequency < 40 Hz
  AC Inputs:  Dry contact  @ 240VAC: 120VAC: 90ms

Relay Outputs
  Current rating 10A  AC1 Max 240VAC
  Maximum Load Resistive: 10A/point; Inductive: 5A/point
  Maximum operating time 15ms (normal condition)

Dimensions:
  95W, 90H, 58D mm,  3.8W, 3.6H, 2.3D inches

Operating Temperature:
 -4 to 131F (-20 to 55C)

Installation: DIN or panel mount


Programming

Program interface ELRS232 or ELUSB2 is required
  Programming languages Logic/Function Block
  Program Memory 300 Lines or 260 Function Blocks
  Programming storage media Flash
  Execution Speed 10ms/cycle
  Programming available in 5 languages

Built-in HMI on ELC models

Customizable screens 31 (H coils)
  LCD Display 4 lines x 16 characters
  Function Keys 8, 4 user-defined (Z inputs)

Communication Options

One programming port RS232 or USB

Wireless I/O long range

Built-in RS485 Communication

Ethernert TPC interface

Modbus-RTU,  Master/Slave mode,
  supports Modbus function codes

Single timer program example shown of 31 possible           independent time clocks for each circuit

Unlimited Possibilities

Combination of Timers and logic
Multiple Time clocks,
Counters, Pulse, Cyclic
On Delay, Off Delay

Override inputs, BAS input

Each Weekly Time Clock
include 3 Cams for scheduling

Password protection



Images are for reference only See Product Specifications



2 CH w Clock Backup  934010      $199.99

1 CH w Clock Backup  934019    $169.99



Series 934000  Time Clock 12/24V

365 Days Electronic Digital Timer,
Features/Specifications

 With 3V Lithium Battery Clock backup ( included )

Operating voltage: 12, 24VAC/DC, @ 70mA

EEPROM memory protects, loss of programming due to power failure.
Momentary and/or Latching Events.
50 individually programmed daily/weekly events.
Block programming capacity 350 events per week.
10 programmable Holiday dates.
Compensates for leap years.
Alphanumeric LCD display simplifies programming.
Standard or Daylight Savings Time settings.
Relay Output NO/NC  rated 10Amp  125VAC or  28VDC
Dimensions: 5.90 x 5.90 x 3.54 in.149.86 x 149.86 x 89.92 mm
Waterproof NEMA4, IP67 ABS plastic

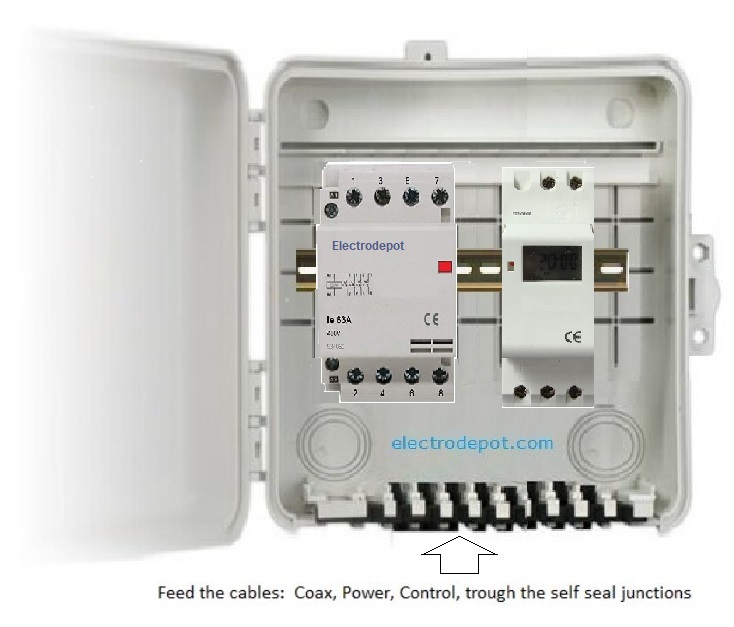

Installation manual








ASTRO Timer Selection



Electronic Astronomic
7-Day or 365 Days Time Switch
120/208-240/277 Volt.





Real-time Clock

ASTRONOMICAL
Daylight saving
 120/208/240/277 V






Smart Time Clocks

EDPLC12





Dimensions:

. .
