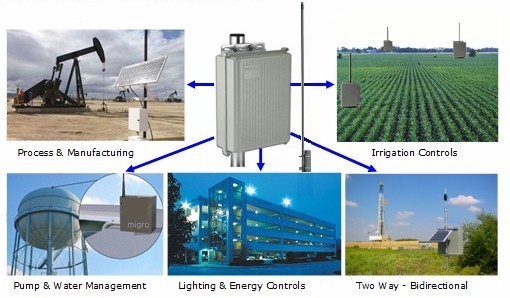

  Credit CardsMade in USACompact Wireless Radio Controls


Single Channel   Request a Quotation

Operation:
Channel 1 Closure,   Output 1 ON
Channel 1 Opening,  Output 1 OFF
4331CH12    12VDC
4331CHAC   120/240VAC

Performance
360m (1200ft)  line-of-sight w 6 inch antenna
Operation:  120/240VAC  or 12VDC
Transmitter input N/O Dry contact
• Relay Output SPST, 6A Class 2 pilot duty
Heavy Duty Weatherproof , IP65 UL Fiber enclosure
• License free 430 - 450MHz Industrial ISM band
• Factory configured systems, Ready to operate
• No setup or programming required





   Specifications      Digital Transmitter
Supply power 12 VDC @ 400 mA
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 2.2 lb (1.10kg)  each unit
Dimensions 9 x 9 x 3.5 in. /  (230.00 x 230.00 x 90.00 mm)
   Specifications      Digital Receiver
Supply power 12 VDC  @ 300 mA
Output   Relay SPST  contact 6.Amp, 30V/240vac  Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Components mounted on 35mm DIN rail
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14° to 140° F (-10° to 60° C)
Mounting  IP22, UL94-5VA, Plastic Enclosure IP65 9 x 9 x 3.5 in.

Migro433-1 Wiring Example




Start - Stop - 2 Channel   Request a Quotation

Operation:
Channel 1 Pulse Closure, Start Output 1 ON
Channel 2 Pulse Closure, Stop Output 1 OFF
4332CHAC   120/240VAC


Systems are supplied with Two Short Range
    Omni Antennas
938091
6 Omni Antenna 9380916 Omni Antenna 938091


Extended Range Antenna Selection ( TWO  are required )


	938432   Yagi antenna 3 E

938432   Yagi  3E Antenna,  2Km
433 MHz, Gain: 7 dBi  Rating: 150 Watts
Impedance 50 ohms
Vertical beam 45 degrees -
Horizontal beam 60 degrees
With 10FT Coax Cable and RF Connector
Base Length: 18", Weight: 1.0lb




5 Element Beam  Yagi Antenna 938455

938455 Yagi 5E Antenna,  4Km
433 MHz, Gain: 9 dBi  Rating: 150 Watts
Impedance 50 ohms
Vertical beam 55 degrees -
Horizontal beam 60 degrees
With 10FT Coax Cable and RF Connector
Base Length: 32", Weight: 4.0lb

    eby    915427

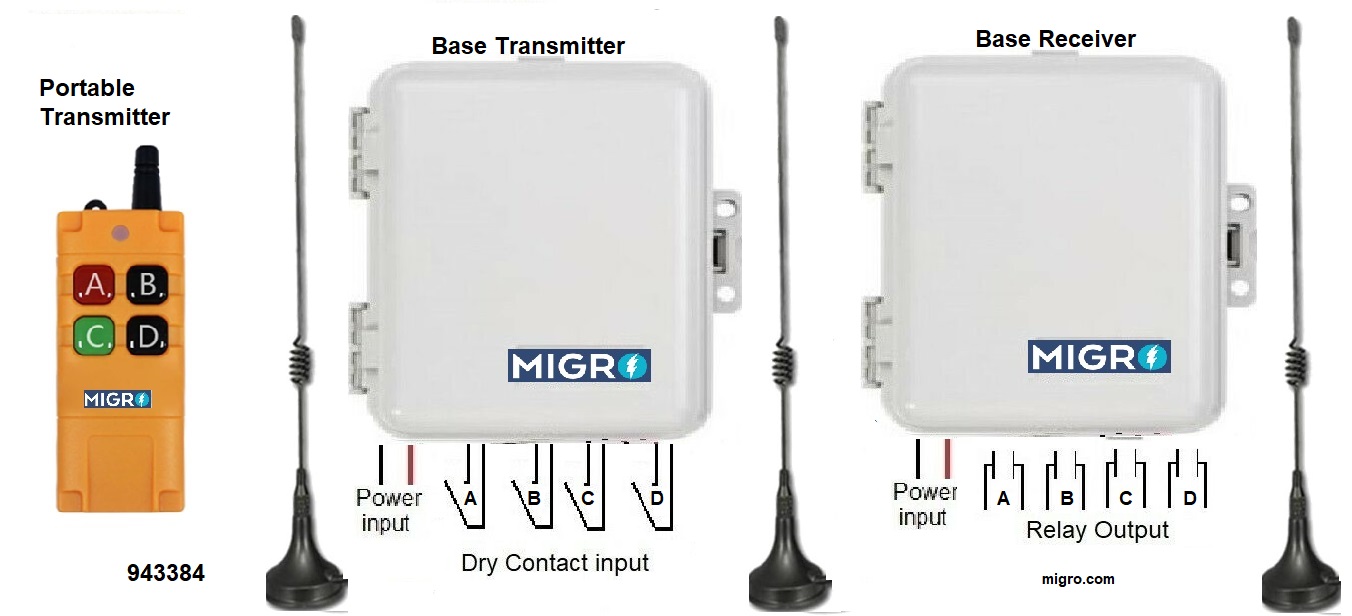

 Single  Channel  Command Kit

Handheld Transmitter Start - Stop
with Stationary Receiver

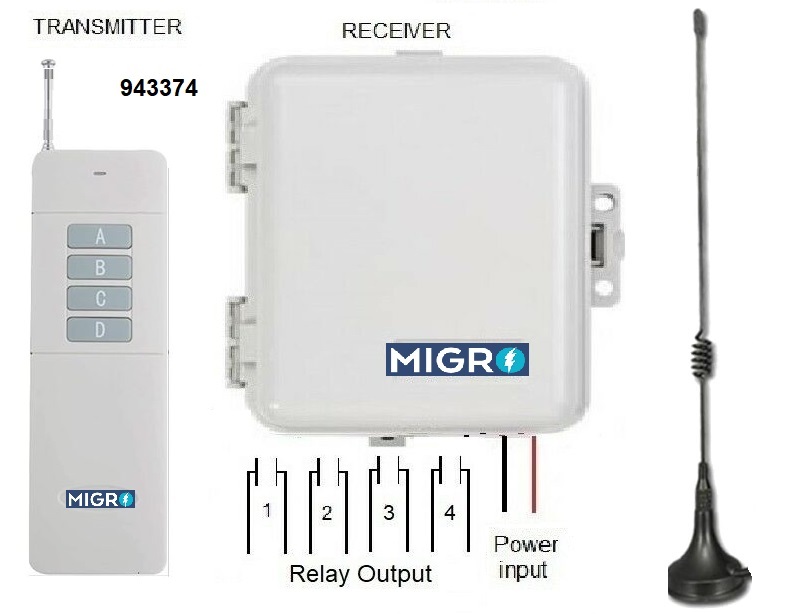

Four (4) Channel Transmitter & Receiver

4 Independent Channels
Dry Contact input, Relay output

              433 Radio Modules

DISCLAIMER:  Radio control equipment in not to be used in life safety.
