Industrial Wireless Radio Controls  Made in USA


Performance
■ 30 dBm High power transmitter
■ Range 1000ft with 938091 antenna ( Supplied)
■ Optional long range 2 Mile (3.km) line-of-sight 938432 ant.
■ Input Dry isolated contact N/O
■ Relay output  6 Amp 240V/30V


Installation features
■ Operation license-free 433MHz ISM band
■ Easy installation,
No programming
■ Panel mount or clip onto DIN-35mm rail
Dimensions

 Operation   Transmitter Receiver
 Continuous: Close switch
Open switch
Relay ON
Relay OFF

Specifications

Option  Battery Backup UPS

Applications:

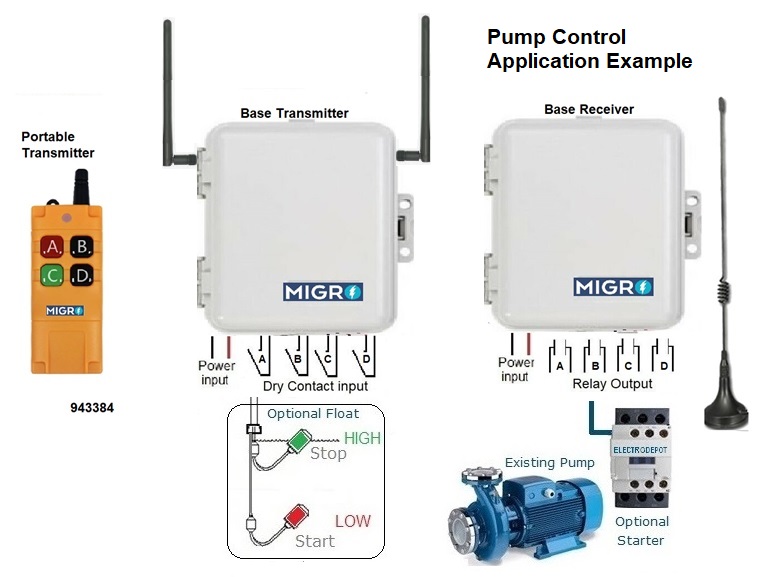

Industrial Monitoring, Pump control, Monitor remote, instruments, sensors, Tank level

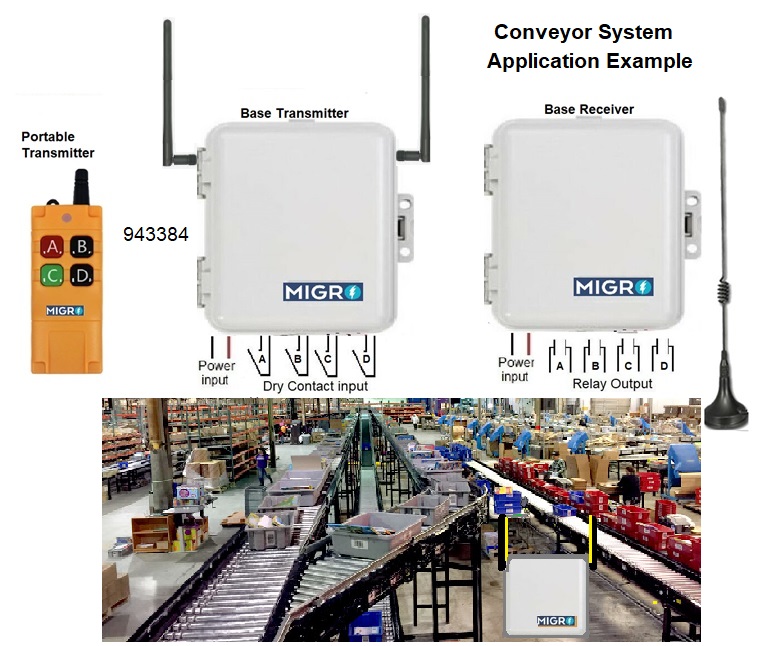

Lighting, Mobile systems, PLC remote, SCADA, Factory process control, Generators. Remote alarms. Solar, Wire replacement




 Modular Transmitter & Receiver 12V


Wiring Example 12VDC*

  1 CH  931281   Picture  out of stock

 2 CH  931282   Picture   out of stock

 4 CH  931284   Picture Request a Quotation

Add the Antennas Two required



Modular Transmitter & Receiver 120/220VAC


  Wiring Example 120/220VAC*

 1 CH  932281  Picture  out of stock

2 CH  932282   Picture  out of stock

 4 CH  932284   Picture   Request a Quotation


Add the Antennas Two required
   Specifications      Digital Transmitter
Supply power 12 VDC @ 400 mA
Inputs  N/O Normally Open, digital dry contact
Transmitter power 30 dBm, per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 0.8 lb (0.40kg)  each unit
Dimensions 4.50 x 3.50 x 3.25 in. /  (114.30 x 88.90 x 86.75 mm)

   Specifications      Digital Receiver
Supply power 12 VDC  @ 300 mA
Output   Relay   6.Amp, 30V/240vac  Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Screw Terminals
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14° to 140° F (-10° to 60° C)
DIN Rail  IP22, UL94-5VA, DIN mount 35mm or panel mount

       Optional Enclosure NEMA 4
■ Fiberglass enclosure
■ Pole or wall mount ready
■ Screw hinged cover
■ Aluminum internal sub panel
Two waterproof cable bushings
■ UL/cUL NEMA/CSA 4
■ UL #E345005

    DIMENSIONS



  971206     $189.99

Single Channel Wireless Control Systems 971206


  Optional Battery Backup Radio System
Special Radio UPS Battery Backup
Provides reliable operation during power interruption,

934012UPS Module charges the battery,
Provides continuous regulated power
Low battery indicator and alarm
Battery low cut off/ reverse protection
Protection: shortcut/ over load / over voltage

Specifications

Single Channel Wireless Control Systems UPS

Application Example



 930080 series

DISCLAIMER:  Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.





943303
Transmitter & Receiver in Weatherproof enclosure 9x9x4 inches
Operation 12VDC  or 120/220 VAC, Include antennas 938091

  943303     $899.99


Antenna Selection ( TWO  are required )


938433  Yagi antenna 12 E


938433  Yagi antenna 12 E

 14 dBi  5 Mile+
 Length: 43", Weight: 3.lb

Impedance 50 ohms  N terminal
Vertical beam 45 degrees -
Horizontal beam 50 degrees
10 ft coax cable and connector

  938433     $369.99


938433  Yagi antenna 12 E
938455,  5 E  Yagi Antenna

 Gain 9 dBi,   3 Mile+

433 MHz, Rating: 150 Watts
Impedance 50 ohms  N terminal
Vertical beam 55 degrees -
 Horizontal beam 60 degrees
Base Length: 32", Weight: 4.0lb
10 ft coax cable and connector

  938455     $249.99


Omni directional base antenna 938450

Omni directional base antenna 938450

Gain: 5 dBi,   2 Mile+

433 MHz,  Rating: 100 Watts
Impedance 50 ohms N terminal

Vertical beam 45 degrees With N female termination
Length: 34", Weight: 3.0lb
10 ft coax cable and connector

  938450     $199.95


938432   Yagi antenna 3 E


938432   Yagi antenna 3 E


Gain 7 dBi,   2 Mile+

433 MHz, Rating: 150 Watts
Impedance 50 ohms  N terminal
Vertical beam 55 degrees -
Horizontal beam 60 degrees
Base Length: 32", Weight: 4.0lb
10 ft coax cable and connector

  938432     $179.99


938092 14 Omni Antenna

938092    14" Omni Antenna


3 dBi  1500ft line of sight
10ft coax cable
  SMA

  938092    $39.99


938091 6 Omni Antenna

938091   6" Omni Antenna

0 dBi Short range
5ft coax cable
  SMA



  938091     $19.99


  Add   Accessories:
933020 Miniature Contactor
Contactors
933020 Miniature Contactor

20A, 3 Pole, 12VDC Coil
2HP @240V, 7.5HP @460V
1HP @120V,
4 KW@ 220V
20Amp AC-1, 12Amp. AC-3
1 N.O. Aux.,
Dimension: 1.7 x 2.5 x 2.3 in
 (45 x 64 x 58 mm)
Surface or DIN rail mountable

  933020     $52.99

	7 Day 24 Hour Timer

7 Day 24 Hour Timer
 DIN rail,
Manual - Auto
 SPDT 16A, 250V Pilot Duty,
 Dim: 3.5H, 1.5W, 2.7D inches
3 Year Battery backup,
16 time schedules

Manual

12VDC

934012    $49.99


934135 Multi function Timer or Latch

934135
Multi function Timer or Latch


Electronic  timer   DIN mount
Time from
0.1s  to 10 days
SPDT relay 10A N.O. and N.C
12,24 VDC  24,110,220 VAC

Specifications


934135   $98.99

Mechanical Float Switch

Mechanical Float Switch

Mechanical Float Switch

  930650     $69.99

.
