Industrial Wireless Radio Controls
| Supply power |
12VDC / 5watt |
|
Inputs |
N/O Normally
Open, digital dry contact |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
|
Power draw |
Standby 1mA,
Transmission 1200mA |
|
Channels |
16 addresses per system
GFSK |
|
Input Wiring |
Din Terminals,
Dry Contact |
| Response |
Loop 500 msec
|
| Weight |
2.8 lb (1.40kg)
each unit |
| Dimensions |
Weatherproof,
IP65 9"W x
6"H x 3"D (240 x 200 x 100 mm) |
|
FCC ID |
OHKFMT154 Class B Devices:
Designation 20KOF1D |
|
Specifications Digital Receiver
915414 |
| Supply power |
120/240VAC or
12VDC / 5watt |
|
Output |
Relay 10Amp, Class 2 pilot duty |
| Frequency |
154MHz •
License free MURS band |
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
| Wiring |
Screw Terminals |
| Antenna Z |
50 Ohm |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
Weatherproof, IP65
9"W
x 9"H x 4"D (240 x 240 x 100 mm |
Please
request a quotation
|
|
Long
Range Wireless Systems
915400
FCC Certified ID:
OHKFMT154
Please
request a quotation |
■
Applications:
Industrial Monitoring,
Pump control,
Monitor remote
sites,
Tank Level,
Lighting control,
Remote Mobile
PLC remote,
Gates.
Factory process control, Generators,
Alarms, Solar,
Wire replacement.
|
|
Performance
•
6 miles ( 10 km )
line-of-sight w Omni 6.7dBi antenna
• Extended range up to 20 km,
Optional Repeaters
•
Receiver with signal strength indicator
■■■ ■ ■
•
Operation: 120/240VAC
Available in 12VDC, 24VDC or 24VAC (Special Order)
•
Transmitter input N/O Dry contact
• Relay Output SPDT, 10A @250VAC
Class 2 pilot duty
•
Heavy Duty Weatherproof, IP65 enclosure
• License free operation
MURS band 154MHz
• Factory configured systems, Ready to operate
• No setup or programming required
• Not limited to line-of-sight
communication
|
|
| 2m■
Selection:
|
 |

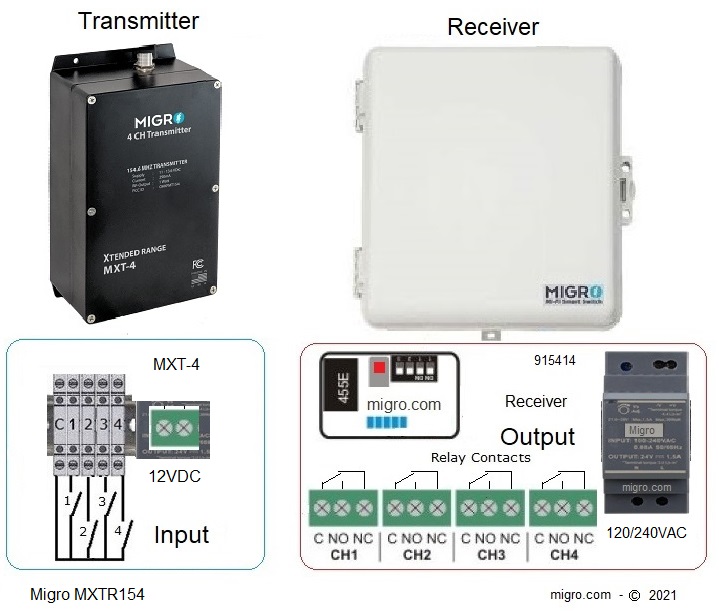

MXTR154 System 4 Channel
915414 Receiver 4 Channel
MXT-4 Transmitter 4 Channel
|
|
|
Transmission Mode |
Receiver
Operation Options: |
|
■ Off Delay Timing
■ Pulse Output
■ Latching
for each
channel
■
Continuous
(1*) optional
|
■ A
Continuous
(1*)
Output (Tx Time Override )
■ B OFF Delay Timer
■ C Channel 1 Start, Channel 2 Stop
■ D Latch Output Any Channel
■ E
Fail-Safe Mode |
|
Output Modules |
Please
request a quotation |
Basic
Package Kit include:
One Base
Transmitter, One Base Receiver
Two 34" Omni Antennas with 10ft coaxial cable,
Weatherproof Enclosures &
Instructions |
 |

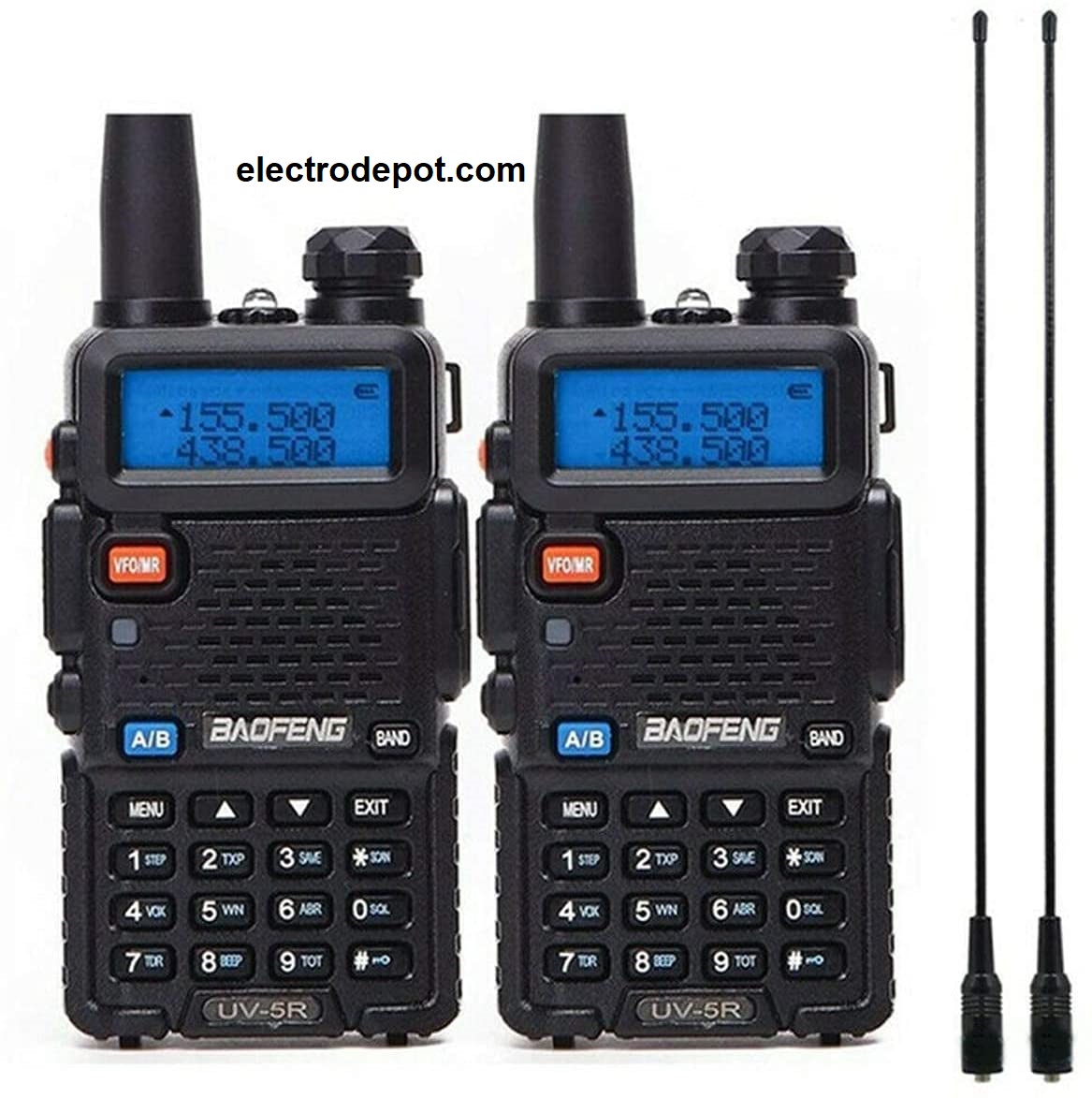

FREE
2 Pack UV-5R Two Way Portable Rechargeable
Long Range Radio Handheld Walkie Talkie &
chargers.
with the purchase of the 915404 control system
Migro
Walkie Talkie ideal for field transmission and range test,
where the wireless control will operate,
916022
( *Limited time offer) |
|
Migro 916022 Specifications
|
DISCLAIMER:
Radio control equipment
in not to be used in life safety.
Radio Installations shall be
performed by a certified professional.
(1*) Maximum
continuous transmission time per FCC; 5 minutes |
|
