Industrial Wireless Radio Controls

Transmitter & Receiver   943301

  Performance
( 3 km )  2 Miles line-of-sight w Yagi antenna
Operation:  120/240VAC or 12VDC
Transmitter input N/O Dry contact
Relay Output SPDT, 6A Class 2 pilot duty
Heavy Duty NEMA4, IP65 UL Fiber enclosure
License free 430 - 450MHz Industrial ISM band
Factory configured systems, Ready to operate
No setup or programming required

Specifications

.
 Operation 2Ch  Transmitter Receiver
 Continuous Close switch Ch 1
Close switch Ch 2
Relay 1  ON
Relay 2  ON

   Specifications      Digital Transmitter
Supply power 120/240VAC or 12VDC /  5watt
Inputs  N/O Normally Open, digital dry contact
Transmitter power per FCC Part 15.249,  50mV/m @ 3m
Transmission Digital Encoded   Gaussian_frequency-shift_keying
Channels 16 addresses per system  GFSK
Input Wiring Din Terminals,  Dry Contact
Response Loop 500 msec
Weight 12 lb (5.40kg)  each unit
Dimensions * 10"W x 8"H x 4"D (254 x 200 x 100 mm) * may vary

   Specifications      Digital Receiver
Supply power 120/240VAC or 12VDC /  5watt
Output   Relay 6Amp, Class 2 pilot duty
Frequency 433 MHz  • License free Industrial ISM band
Configuration DIP switch factory preset
Compliance FCC CFR part 15.247, 95 sub E
Wiring Screw Terminals
Antenna Z 50 Ohm SMA RF connector
Ambient temp  14 to 140 F (-10 to 60 C)
Enclosure  NEMA4, IP65 Fiber UL listed

DISCLAIMER:
Radio control equipment in not to be used in life safety.
Radio Installations shall be performed by a certified professional.

       Wireless Range from: 3 Km   (2 Miles )

 Optional Extended range up to to 16 Km (10 Miles)

Applications:
Industrial Monitoring, Pump control, Monitor remote instruments, sensors,
Lighting control, Packing and mobile system, PLC remote, SCADA,
Factory process control,  Alarms, Generators
Solar,  Wire replacement.

   .

   943301  Single (1) Channel System
   943302  Two  (2)  Channel System
   943304  Four (4)  Channel System

Options:
High, Low Status level indicator lamp
Fail Safe module
Battery Backup module

Please request a quotation

Package include:  One  Base Transmitter, One  Base Receiver
Two Yagi 938432 Antennas with 10ft coaxial cable, NEMA 4 Fiber enclosures & Instructions


  Transmitter 4 Channel   Receiver 4 Channel

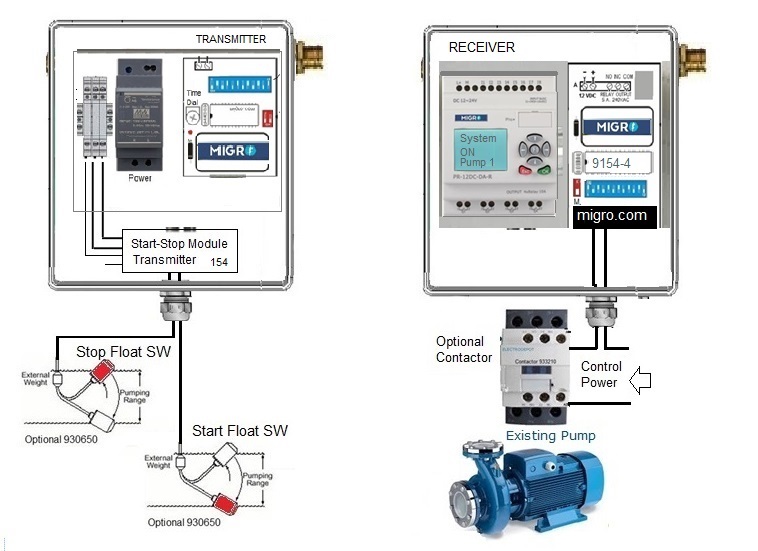

   Typical application example


   Optional Solar power pack
