 Industrial Wireless Radio Controls
|
915421 Please
Request latest price
Performance
•
3 miles ( 5 km)
line-of-sight w Omni antenna
• Extended range up to 20 km
• Operation: 120/240VAC
or 12VDC
•
Transmitter input N/O Dry contact
•
Receiver with signal strength indicator
• Relay Output SPDT, 6A Class 2 pilot duty
•
Heavy Duty NEMA4, IP65 UL Fiber enclosure
• License free 154MHz Industrial
MURS band
• Factory configured systems, Ready to operate
• No setup or programming required
|
■

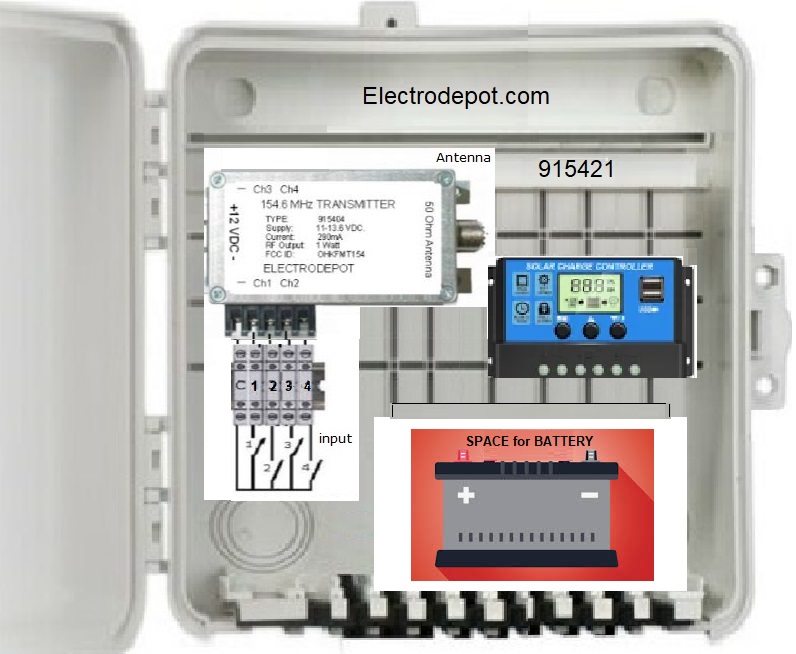

TRANSMITTER
Included: Solar Panel 40W
and Charge Controller with the Transmitter
Enclosure.
Battery not supplied |
DISCLAIMER:
Radio control equipment
in not to be used in life safety.
Radio Installations shall be
performed by a certified professional. |
|
|
Solar Remote
operation for:
Pumps, Lighting,
Process, Alarms,
Level, Monitoring, Valves.
■
Applications:
Industrial Monitoring, Pump control, Monitor remote
sites, Tank Level,
Lighting control, Remote Mobile system, PLC remote, SCADA,
Gates.
Factory process control, Alarms, Generators,
Solar, Wire replacement.
|
|
■
915411
■
915421 |
Single Channel w Solar panel at the
transmitter site.
Two Channel
w Solar panel at the transmitter site.
|
■
Complete
system:
One Transmitter
and One Receiver in NEM4 Enclosure
One 40W Solar Panel,
Two Omni Antennas 931487 Antenna Selection
| Supply power |
Solar Power or
12VDC / 7watt |
|
Inputs |
N/O Normally
Open, digital dry contact |
| Transmitter power |
per
FCC Part 15.249,
50mV/m @ 3m |
| Transmission |
Digital Encoded
Gaussian_frequency-shift_keying |
|
Channels |
16 addresses per system
GFSK |
|
Input Wiring |
Din Terminals,
Dry Contact |
| Response |
Loop 500 msec
|
| Weight |
6.8 lb (3.40kg)
each unit |
| (*) Dimensions |
12"W x
12"H x
3"D (300 x 300x 90 mm) |
|
Specifications Digital Receiver
|
| Supply power |
120/240VAC or
12VDC / 5watt |
|
Output |
Relay 8Amp, Class 2 pilot duty |
| Frequency |
154MHz •
License free MURS band |
|
Configuration |
DIP switch factory
preset |
|
Compliance |
FCC CFR part 15.247, 95 sub E |
| Wiring |
Screw Terminals |
| Antenna Z |
50 Ohm |
| Ambient temp |
14° to 140° F (-10° to 60°
C) |
| Enclosure |
NEMA4, IP65
|
(*) Final Component layout and Dimension may vary

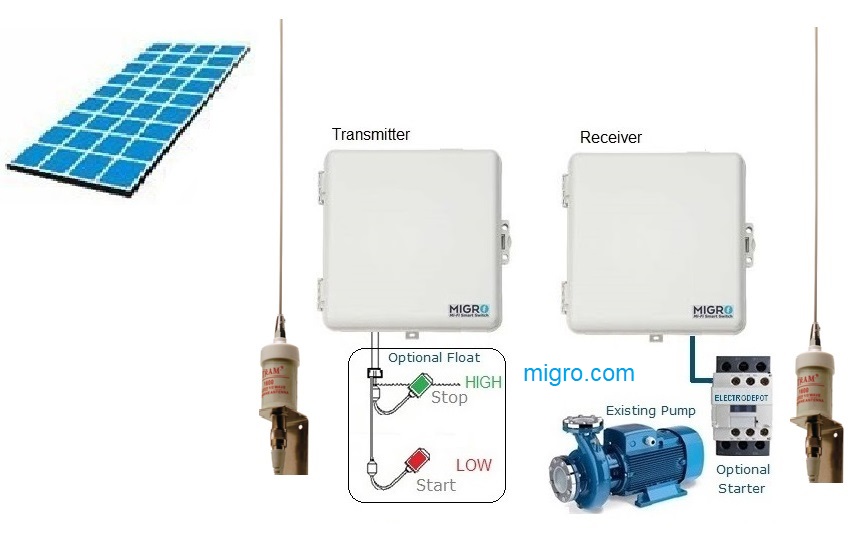

System
with High and Log Indicators
|
Typical
wiring application example using Two Channels
|
