Contactors: Motor Control, Lighting, HVAC,
Power, 3 or 4 pole. Efficient New
Streamline, Smaller, Low Power Drain, Low
Noise, Easy to Install.
32 Amp. AC-1, 18 Amp AC-3
Normally Open (N.O.)
contacts
600V
32 A. Incandescent, LED or resistive load
20 A. Ballast, 7.5HP @480V
Auxiliary contact 1NO/1NC
Details*
Specifications
50
Amp. AC-1, 32 Amp. AC-3 Normally Open (N.O.)
contacts 600V 50 A.
Incandescent, LED or resistive load 32 A. Motor control, 20HP@
480VAC Auxiliary contact 1NO/1NC Details*Specifications
40A.
4 Pole N/C Specifications
Normally closed (N.C.) contacts
Rated UI 400V,
Ith 500V 934004 40 A. Incandescent or resistive load AC1 32 A. Ballast and General purpose AC3
Power
indicator, DIN mount Dim: 2.2 x 3.5 x 2.5 in
(55 x 90 x 70 mm)
60 A. 4 Pole 934060
Normally Open
(N.O.) contacts
7.5HP @240V, 10KW 277VAC
40 A. Ballast, 7 KW@ 220VAC
63 A AC-1, 40 A. AC-3
Power
indicator, DIN mount
Dim: 2.2 x 3.5 x 2.5 in (55 x 90 x 70 mm) 120VAC coil

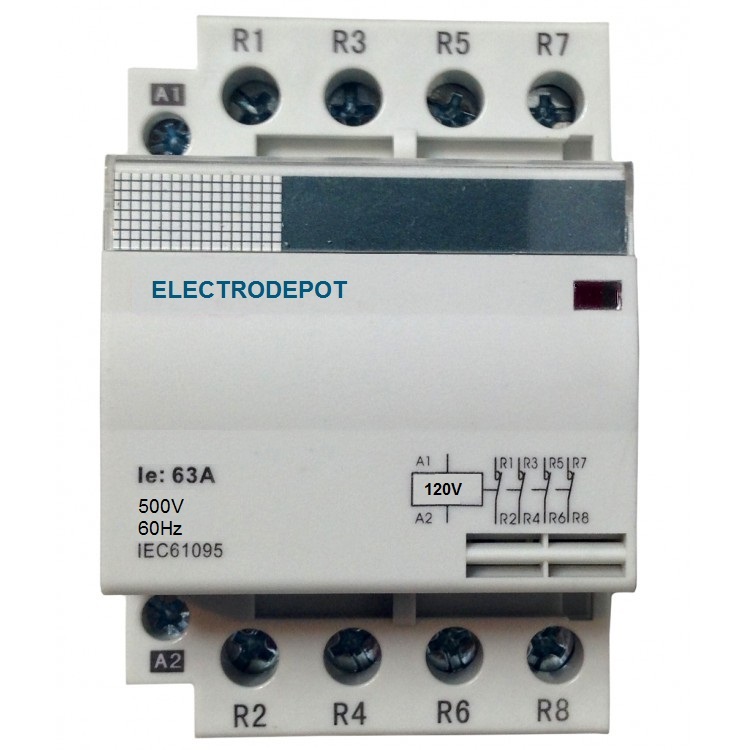

60 A. 4 Pole
934006
Normally closed (N.C.) contacts
Rated
UI 400V,
Ith 500V 40A. Ballast, 7 KW@ 220VAC 63A AC-1, 40 A. AC-3 40A, 24VDC, DC Switching Power
indicator, DIN mount
Dim: 2.2 x 3.5 x 2.5 in (55 x 90 x 70 mm) 120VAC coil
933020
Miniature Contactor 20A, 3 Pole,
120VAC Coil 2HP
@240V, 7.5HP @460V
1HP @120V, 20Amp AC-1, 12Amp. AC-3
Screw Clamp Terminals, 600V, 1 N.O. Aux.,
AC Coil Current Inrush 32VA,
Sealed 6VA
Dim: 1.7 x 2.5 x 2.3 in
(45 x 64 x 58 mm)
933020
Miniature Contactor 20A, 3 Pole,
12VDC Coil
2HP
@240V, 7.5HP @460V
1HP @120V, 20Amp AC-1, 12Amp. AC-3 Screw Clamp Terminals, 600V, 1 N.O. Aux., DC Coil Current Inrush/Sealed 250mA
Dim: 1.7 x 2.5 x 2.3 in
(45 x 64 x 58 mm)
