Multi function Electronic Timer
-
Time Delay
Operating Modes
- Selectable time range 0.1 s to 10
days
10 knob selectable functions:
- ON delay
- OFF delay
- Interval on trigger open
- Double interval
- Delay on release
- Symmetrical recycler ON first
- Symmetrical recycler OFF first
- Special functions latch and single shot
Automatic or manual start
Repeatability:
≤0.2%
|
|
Features - Specifications
|
LED indication for relay status and
power supply ON
Operating Voltage:
12, 24 VDC,
24.110, 220 VAC
Start Switch Closure Time: 20 milliseconds
minimum
Power Consumption: 1 mA, timing 30 mA. maximum
-
Output Relay Contacts, S.P.D.T.
Rating: 15
Amp. max. resistive at 240 volts A.C
- 7.5 mm DIN-rail housing
- Environmental
Storage Temperature: -23°C to 70°C,
- DIN-rail i
mounting DIN/EN 50 022
- UL listed
E308660
| |
Drive
Lamps
Valves
Solenoids
Contactors

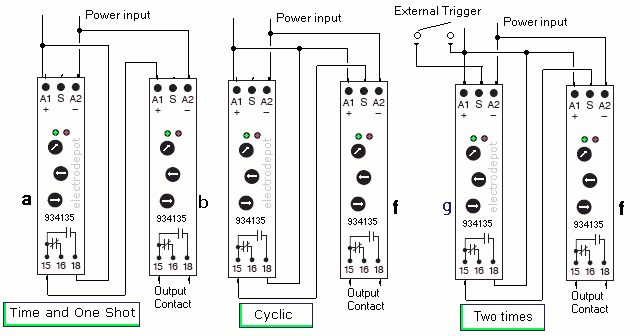

Application Examples |
